Mirò UP+DOWN Light (Pendant)

LED linear suspension lamp with direct and indirect emission for the technical lighting with high lighting efficency, controlled emission and shielded sources.

Mirò suspension is avaiable with Pmma screen with micropyramidal surface to limit shining levels or with opal PC diffuser.

Built-in power supply in body lamp. On/off or dimmerable DALI/Push.

VIDEO "MIRÒ Composition"

Finishing detail:
BV = Ceiling rose: White / Cable: Transparent / Body: White
NE = Ceiling rose: Black / Cable: Transparent / Body: Black
CUSTOM FINISHES = Ceiling rose: White / Cable: Transparent / Body: Custom

Black cable - Custom

220V track connection ready - Custom

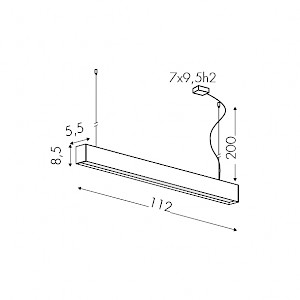

1030BOF OnOff - 35W 3540lm + 18W 2390lm - 220V
1030BDM DALI (Push) - 35W 3540lm + 18W 2390lm - 220V
1030BTF Triac 35W 3540lm + 18W 2390lm - 220V
  • Finish
  • White White
  • Black Black
  • Hue
  • 3000K (B)3000K (B)
  • 4000K (C)4000K (C)
  • Diffuser
  • Opal (E2)
  • Prismatic (E19)
  • Power supply
  • incorporatedincorporated
  • Certifications
  • CE
  • IP20
  • Protection class 1
  • Light emission
  • Diffused down main emission + Up

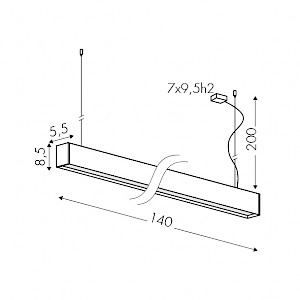

1030COF OnOff - 44W 4425lm + 18W 2390lm - 220V
1030CDM DALI (Push) - 44W 4425lm + 18W 2390lm - 220V
1030CTF Triac 44W 4425lm + 18W 2390lm - 220V
  • Finish
  • White White
  • Black Black
  • Hue
  • 3000K (B)3000K (B)
  • 4000K (C)4000K (C)
  • Diffuser
  • Opal (E2)
  • Prismatic (E19)
  • Power supply
  • incorporatedincorporated
  • Certifications
  • CE
  • IP20
  • Protection class 1
  • Light emission
  • Diffused down main emission + Up

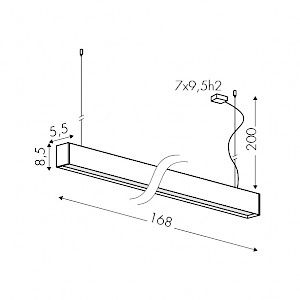

1030DOF OnOff - 53W 5310lm + 18W 2390lm - 220V
1030DDM DALI (Push) - 53W 5310lm + 18W 2390lm - 220V
1030DTF Triac 53W 5310lm + 18W 2390lm - 220V
  • Finish
  • White White
  • Black Black
  • Hue
  • 3000K (B)3000K (B)
  • 4000K (C)4000K (C)
  • Diffuser
  • Opal (E2)
  • Prismatic (E19)
  • Power supply
  • incorporatedincorporated
  • Certifications
  • CE
  • IP20
  • Protection class 1
  • Light emission
  • Diffused down main emission + Up
1030EOF OnOff - 62W 6195lm + 18W 2390lm - 220V
1030EDM DALI (Push) - 62W 6195lm + 18W 2390lm - 220V
1030ETF Triac 62W 6195lm + 18W 2390lm - 220V
  • Finish
  • White White
  • Black Black
  • Hue
  • 3000K (B)3000K (B)
  • 4000K (C)4000K (C)
  • Diffuser
  • Opal (E2)
  • Prismatic (E19)
  • Power supply
  • incorporatedincorporated
  • Certifications
  • CE
  • IP20
  • Protection class 1
  • Light emission
  • Diffused down main emission + Up
1030FOF OnOff - 70W 7080lm + 18W 2390lm - 220V
1030FDM DALI (Push) - 70W 7080lm + 18W 2390lm - 220V
1030FTF Triac 70W 7080lm + 18W 2390lm - 220V
  • Finish
  • White White
  • Black Black
  • Hue
  • 3000K (B)3000K (B)
  • 4000K (C)4000K (C)
  • Diffuser
  • Opal (E2)
  • Prismatic (E19)
  • Power supply
  • incorporatedincorporated
  • Certifications
  • CE
  • IP20
  • Protection class 1
  • Light emission
  • Diffused down main emission + Up
1030GOF OnOff - 79W 7965lm + 18W 2390lm - 220V
1030GDM DALI (Push) - 79W 7965lm + 18W 2390lm - 220V
1030GTF Triac 79W 7965lm + 18W 2390lm - 220V
  • Finish
  • White White
  • Black Black
  • Hue
  • 3000K (B)3000K (B)
  • 4000K (C)4000K (C)
  • Diffuser
  • Opal (E2)
  • Prismatic (E19)
  • Power supply
  • incorporatedincorporated
  • Certifications
  • CE
  • IP20
  • Protection class 1
  • Light emission
  • Diffused down main emission + Up

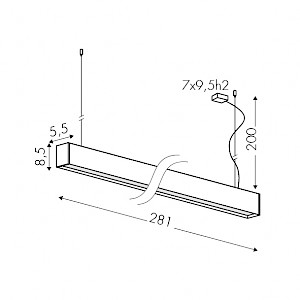

1030HOF OnOff - 88W 8850lm + 18W 2390lm - 220V
1030HDM DALI (Push) - 88W 8850lm + 18W 2390lm - 220V
1030HTF Triac 88W 8850lm + 18W 2390lm - 220V
  • Finish
  • White White
  • Black Black
  • Hue
  • 3000K (B)3000K (B)
  • 4000K (C)4000K (C)
  • Diffuser
  • Opal (E2)
  • Prismatic (E19)
  • Power supply
  • incorporatedincorporated
  • Certifications
  • CE
  • IP20
  • Protection class 1
  • Light emission
  • Diffused down main emission + Up
COMPOSITE LINES with multiple MODULES

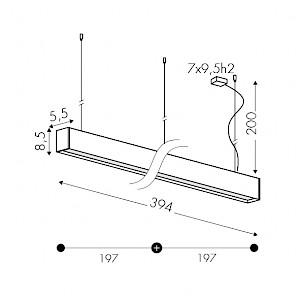

1030LOF OnOff - 123W 12390lm + 36W 4782lm - 220V
1030LDM DALI (Push) - 123W 12390lm + 36W 4782lm - 220V
1030LTF Triac 123W 12390lm + 36W 4782lm - 220V
  • Finish
  • White White
  • Black Black
  • Hue
  • 3000K (B)3000K (B)
  • 4000K (C)4000K (C)
  • Diffuser
  • Opal (E2)
  • Prismatic (E19)
  • Power supply
  • incorporatedincorporated
  • Certifications
  • CE
  • IP20
  • Protection class 1
  • Light emission
  • Diffused down main emission + Up
1030MOF OnOff - 158W 15931lm + 36W 4782lm - 220V
1030MDM DALI (Push) - 158W 15931lm + 36W 4782lm - 220V
1030MTF Triac 158W 15931lm + 36W 4782lm - 220V
  • Finish
  • White White
  • Black Black
  • Hue
  • 3000K (B)3000K (B)
  • 4000K (C)4000K (C)
  • Diffuser
  • Opal (E2)
  • Prismatic (E19)
  • Power supply
  • incorporatedincorporated
  • Certifications
  • CE
  • IP20
  • Protection class 1
  • Light emission
  • Diffused down main emission + Up

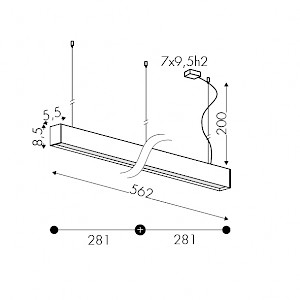

1030NOF OnOff - 176W 17700lm + 36W 4782lm - 220V
1030NDM DALI (Push) - 176W 17700lm + 36W 4782lm - 220V
1030NTF Triac 176W 17700lm + 36W 4782lm - 220V
  • Finish
  • White White
  • Black Black
  • Hue
  • 3000K (B)3000K (B)
  • 4000K (C)4000K (C)
  • Diffuser
  • Opal (E2)
  • Prismatic (E19)
  • Power supply
  • incorporatedincorporated
  • Certifications
  • CE
  • IP20
  • Protection class 1
  • Light emission
  • Diffused down main emission + Up

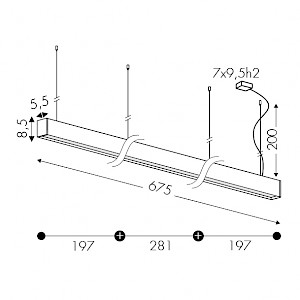

1030OOF OnOff - 212W 21240lm + 54W 7173lm - 220V
1030ODM DALI (Push) - 212W 21240lm + 54W 7173lm - 220V
1030OTF Triac 212W 21240lm + 54W 7173lm - 220V
  • Finish
  • White White
  • Black Black
  • Hue
  • 3000K (B)3000K (B)
  • 4000K (C)4000K (C)
  • Diffuser
  • Opal (E2)
  • Prismatic (E19)
  • Power supply
  • incorporatedincorporated
  • Certifications
  • CE
  • IP20
  • Protection class 1
  • Light emission
  • Diffused down main emission + Up

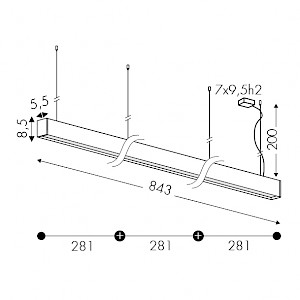

1030POF OnOff - 246W 24780lm + 54W 7173lm - 220V
1030PDM DALI (Push) - 246W 24780lm + 54W 7173lm - 220V
1030PTF Triac 246W 24780lm + 54W 7173lm - 220V
  • Finish
  • White White
  • Black Black
  • Hue
  • 3000K (B)3000K (B)
  • 4000K (C)4000K (C)
  • Diffuser
  • Opal (E2)
  • Prismatic (E19)
  • Power supply
  • incorporatedincorporated
  • Certifications
  • CE
  • IP20
  • Protection class 1
  • Light emission
  • Diffused down main emission + Up

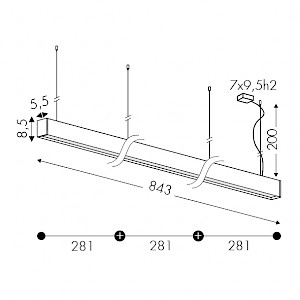

1030QOF OnOff - 264W 26550lm + 54W 7173lm - 220V
1030QDM DALI (Push) - 264W 26550lm + 54W 7173lm - 220V
1030QTF Triac 264W 26550lm + 54W 7173lm - 220V
  • Finish
  • White White
  • Black Black
  • Hue
  • 3000K (B)3000K (B)
  • 4000K (C)4000K (C)
  • Diffuser
  • Opal (E2)
  • Prismatic (E19)
  • Power supply
  • incorporatedincorporated
  • Certifications
  • CE
  • IP20
  • Protection class 1
  • Light emission
  • Diffused down main emission + Up

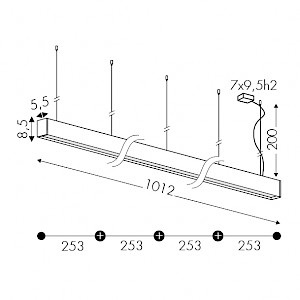

1030ROF OnOff - 317W 31861lm + 70W 9564lm - 220V
1030RDM DALI (Push) - 317W 31861lm + 70W 9564lm - 220V
1030RTF Triac 317W 31861lm + 70W 9564lm - 220V
  • Finish
  • White White
  • Black Black
  • Hue
  • 3000K (B)3000K (B)
  • 4000K (C)4000K (C)
  • Diffuser
  • Opal (E2)
  • Prismatic (E19)
  • Power supply
  • incorporatedincorporated
  • Certifications
  • CE
  • IP20
  • Protection class 1
  • Light emission
  • Diffused down main emission + Up
