Universal profiles plafone mid plus [100-300cm]

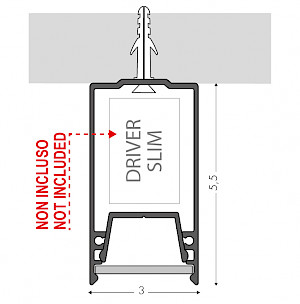

Aluminum profile composed of a "Cover" structure in which it is possible to house the power cables, a ‘slim’ type power supply and a high dissipation profile which contains the LED.

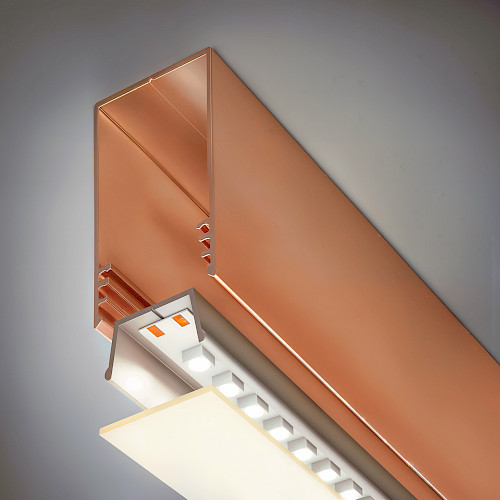

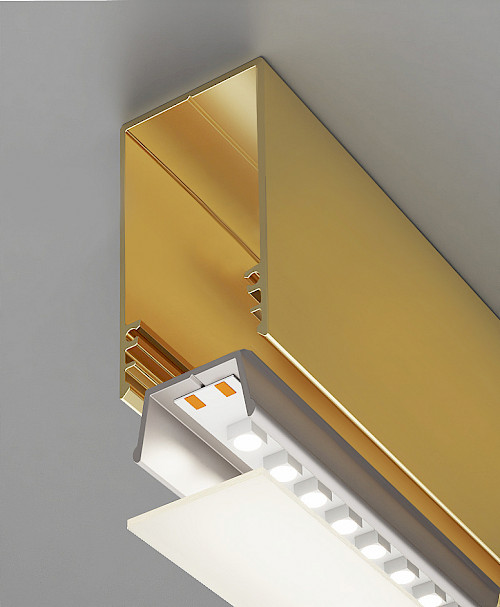

the Cover can be CUSTOMIZED in numerous special colours:

metal: Gold, Copper and Bronze

and pastel: Sage, Navy Blue and Ochre

VIDEO

Closing heads included

! Power supplies 24V NOT INCLUDED ! to be ordered separately

Link DRIVERS 24V ONOFF

Link DRIVERS 24V DALI

Link DRIVERS 24V TRIAC

Power supplies are to be placed in REMOTE (not built-in)

Can contain "SLIM" type power supplies.

Light Management system (not included)

Management light link

3116Z0MT1 Profile 100cm - LED strip and Driver not included - Caps included
3116Z0MT2 Profile 200cm - LED strip and Driver not included - Caps included
3116Z0MT3 Profile 300cm - LED strip and Driver not included - Caps included
  • Finish
  • White White
  • Black Black
  • Hue
  • Diffuser
  • Opal (E2)
  • Prismatic (E19)
  • Power supply
  • not includednot included
  • Light emission
  • Diffused down

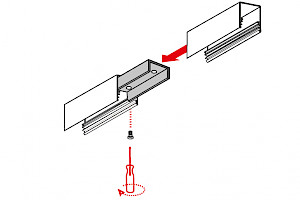

3116GL pack of mechanical joints (5 pcs)
On request

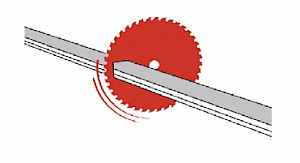

TAILOR-MADE SERVICE
001001A Profile cutting
€ 11 VAT excluded

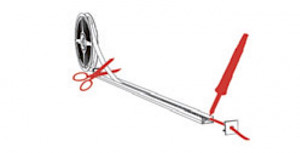

STRIP CUTTING + WELDING SERVICE
001002A strip cutting + welding service
€ 13 VAT excluded
STRIPLED IP20
90101427K20MT 14,4W 1900lm/mt - 24 VDC 2700K IP20 (1mt)
€ 14 VAT excluded
90101430K20MT 14,4W 1900lm/mt - 24 VDC 3000K IP20 (1mt)
€ 14 VAT excluded
90101440K20MT 14,4W 1900lm/mt - 24 VDC 4000K IP20 (1mt)
€ 14 VAT excluded
901014RGB20MT 14,4W 600lm/mt - 24 VDC RGB IP20 (1mt)
€ 15 VAT excluded
STRIPLED IP20
90102227K20MT 22W 2880lm/mt - 24 VDC 2700K IP20 (1mt)
€ 33 VAT excluded
90102230K20MT 22W 2880lm/mt - 24 VDC 3000K IP20 (1mt)
€ 33 VAT excluded
90102240K20MT 22W 2880lm/mt - 24 VDC 4000K IP20 (1mt)
€ 33 VAT excluded
STRIPLED IP65
90101427K65MT 14,4W 1900lm/mt - 24 VDC 2700K IP65 (1mt)
€ 16 VAT excluded
90101430K65MT 14,4W 1900lm/mt - 24 VDC 3000K IP65 (1mt)
€ 16 VAT excluded
90101440K65MT 14,4W 1900lm/mt - 24 VDC 4000K IP65 (1mt)
€ 16 VAT excluded
901014RGB65MT 14,4W 600lm/mt - 24 VDC RGB IP65 (1mt)
€ 17 VAT excluded
STRIPLED IP65
90102227K65MT 22W 2880lm/mt - 24 VDC 2700K IP65 (1mt)
€ 39 VAT excluded
90102230K65MT 22W 2880lm/mt - 24 VDC 3000K IP65 (1mt)
€ 39 VAT excluded
90102240K65MT 22W 2880lm/mt - 24 VDC 4000K IP65 (1mt)
€ 39 VAT excluded
ROLLA 5MT IP20
90101442700 14,4W 1900lm/mt - 24 VDC 2700K IP20 (5mt)
€ 62 VAT excluded
90101443000 14,4W 1900lm/mt - 24 VDC 3000K IP20 (5mt)
€ 62 VAT excluded
90101444000 14,4W 1900lm/mt - 24 VDC 4000K IP20 (5mt)
€ 62 VAT excluded
9010144RGB 14,4W 600lm/mt - 24 VDC RGB IP20 (5mt)
€ 68 VAT excluded
ROLLA 5MT IP20
9010222700 22W 2880lm/mt - 24 VDC 2700K IP20 (5mt)
€ 124 VAT excluded
9010223000 22W 2880lm/mt - 24 VDC 3000K IP20 (5mt)
€ 124 VAT excluded
9010224000 22W 2880lm/mt - 24 VDC 4000K IP20 (5mt)
€ 124 VAT excluded
ROLLA 5MT IP20
90101442700IP65 14,4W 1900lm/mt - 24 VDC 2700K IP65 (5mt)
€ 75 VAT excluded
90101443000IP65 14,4W 1900lm/mt - 24 VDC 3000K IP65 (5mt)
€ 75 VAT excluded
90101444000IP65 14,4W 1900lm/mt - 24 VDC 4000K IP65 (5mt)
€ 75 VAT excluded
9010144RGBIP65 14,4W 1900lm/mt - 24 VDC RGB IP65 (5mt)
€ 82 VAT excluded
ROLLA 5MT IP20
9010222700IP65 22W 2880lm/mt - 24 VDC 2700K IP65 (5mt)
€ 186 VAT excluded
9010223000IP65 22W 2880lm/mt - 24 VDC 3000K IP65 (5mt)
€ 186 VAT excluded
9010224000IP65 22W 2880lm/mt - 24 VDC 4000K IP65 (5mt)
€ 186 VAT excluded
